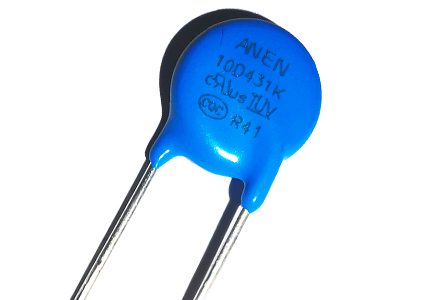

10D压敏电阻
- 压敏电阻是一氧化锌为原材料高温烧结而成的半导体限压型浪涌器件，它以其优异的非线性特性和强大的浪涌吸收能力被广泛应用于电子线路中进行过压防护。体积：10MM 电压：18-1500V...
- 咨询热线：18926782968
-
产品详情
压敏电阻是一氧化锌为原材料高温烧结而成的半导体限压型浪涌器件，它以其优异的非线性特性和强大的浪涌吸收能力被广泛应用于电子线路中进行过压防护。体积：10MM 电压：18-1500V 通流：500-3500A。

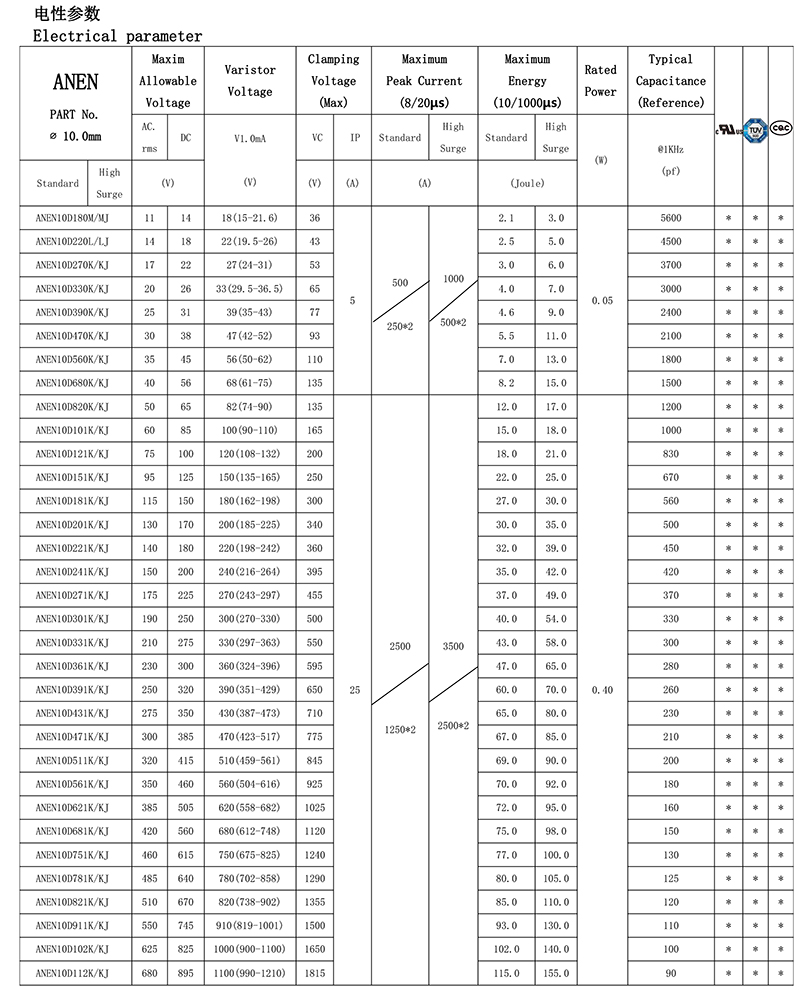

| Type Number | VaristorVoltage | Max. AllowableVoltage | Max. Energy(10/1000μs) | Max. ClampingVoltage | Withstanding | ||
| (8/20μs) | Surge Current | ||||||
| V1mA(V) | VAC(V) | VDC(V) | (J) | IP(A) | VC(V) | I(A) | |
| 10D180K | 15~22 | 11 | 14 | 1.6 | 5 | 38 | 500 |
| 10D220K | 20~26 | 14 | 18 | 2 | 5 | 43 | 500 |
| 10D270K | 24.3~31.1 | 17 | 22 | 2.4 | 5 | 53 | 500 |
| 10D330K | 29.7~37.9 | 20 | 26 | 3 | 5 | 65 | 500 |
| 10D390K | 35.2~44.8 | 25 | 31 | 3.5 | 5 | 77 | 500 |
| 10D470K | 43~53 | 30 | 38 | 4.2 | 5 | 93 | 500 |
| 10D560K | 51~63 | 35 | 45 | 5 | 5 | 110 | 500 |
| 10D680K | 62~76 | 40 | 56 | 6.1 | 5 | 135 | 500 |
| 10D101K | 90~110 | 60 | 85 | 9 | 25 | 165 | 2500 |
| 10D101KJ | 90~110 | 60 | 85 | 11.3 | 25 | 165 | 3500 |
| 10D121K | 108~132 | 75 | 100 | 10.8 | 25 | 200 | 2500 |
| 10D121KJ | 108~132 | 75 | 100 | 13.5 | 25 | 200 | 3500 |
| 10D151K | 135~165 | 95 | 125 | 13.5 | 25 | 250 | 2500 |
| 10D151KJ | 135~165 | 95 | 125 | 16.9 | 25 | 250 | 3500 |
| 10D181K | 162~198 | 115 | 150 | 16.2 | 25 | 300 | 2500 |
| 10D181KJ | 162~198 | 115 | 150 | 20.3 | 25 | 300 | 3500 |
| 10D201K | 180~220 | 130 | 170 | 18 | 25 | 340 | 2500 |
| 10D201KJ | 180~220 | 130 | 170 | 22.5 | 25 | 340 | 3500 |
| 10D221K | 198~242 | 140 | 180 | 19.8 | 25 | 360 | 2500 |
| 10D221KJ | 198~242 | 140 | 180 | 24.8 | 25 | 360 | 3500 |
| 10D241K | 216~264 | 150 | 200 | 21.6 | 25 | 395 | 2500 |
| 10D241KJ | 216~264 | 150 | 200 | 27 | 25 | 395 | 3500 |
| 10D271K | 243~297 | 175 | 225 | 24.3 | 25 | 455 | 2500 |
| 10D271KJ | 243~297 | 175 | 225 | 30.4 | 25 | 455 | 3500 |
| 10D301K | 270~330 | 195 | 250 | 27 | 25 | 505 | 2500 |
| 10D301KJ | 270~330 | 195 | 250 | 33.8 | 25 | 505 | 3500 |
| 10D331K | 297~363 | 210 | 275 | 29.7 | 25 | 550 | 2500 |
| 10D331KJ | 297~363 | 210 | 275 | 37.1 | 25 | 550 | 3500 |
| 10D361K | 324~396 | 230 | 300 | 32.4 | 25 | 595 | 2500 |
| 10D361KJ | 324~396 | 230 | 300 | 40.5 | 25 | 595 | 3500 |
| 10D391K | 351~429 | 250 | 320 | 35.1 | 25 | 650 | 2500 |
| 10D391KJ | 351~429 | 250 | 320 | 43.9 | 25 | 650 | 3500 |
| 10D431K | 387~473 | 275 | 350 | 38.7 | 25 | 710 | 2500 |
| 10D431KJ | 387~473 | 275 | 350 | 48.4 | 25 | 710 | 3500 |
| 10D471K | 423~517 | 300 | 385 | 42.3 | 25 | 775 | 2500 |
| 10D471KJ | 423~517 | 300 | 385 | 52.9 | 25 | 775 | 3500 |
| 10D511K | 459~561 | 320 | 418 | 42.3 | 25 | 845 | 2500 |
| 10D511KJ | 459~561 | 320 | 418 | 52.9 | 25 | 845 | 3500 |
| 10D561K | 504~616 | 350 | 460 | 42.3 | 25 | 920 | 2500 |
| 10D561KJ | 504~616 | 350 | 460 | 52.9 | 25 | 920 | 3500 |
| 10D621K | 558~682 | 385 | 505 | 42.3 | 25 | 1025 | 2500 |
| 10D621KJ | 558~682 | 385 | 505 | 52.9 | 25 | 1025 | 3500 |
| 10D681K | 612~748 | 420 | 560 | 42.3 | 25 | 1120 | 2500 |
| 10D681KJ | 612~748 | 420 | 560 | 52.9 | 25 | 1120 | 3500 |
| 10D102K | 900~1100 | 625 | 825 | 54 | 25 | 1650 | 2500 |
| 10D102KJ | 900~1100 | 625 | 825 | 67.5 | 25 | 1650 | 3500 |
| 10D112K | 990~1210 | 680 | 895 | 59.4 | 25 | 1815 | 2500 |
| 10D112KJ | 990~1210 | 680 | 895 | 74.3 | 25 | 1815 | 3500 |
| 10D122K | 1080~1320 | 750 | 990 | 90 | 25 | 1980 | 2500 |
| 10D122KJ | 1080~1320 | 750 | 990 | 95 | 25 | 1980 | 3500 |
| 10D152K | 1350~1650 | 900 | 1220 | 80 | 25 | 2475 | 2500 |
| 10D152KJ | 1350~1650 | 900 | 1220 | 100 | 25 | 2475 | 3500 |
